High speed Ampoule and Vial sticker labeling machine


Machine Introduction

1. It is suitable for labeling of medicines (such as oral liquid, ampoules), stationery (such as solid glue or liquid glue), water injection and other products.

2. The main materials of the equipment are SUS304 stainless steel and aluminum alloy, and the layout is beautiful and generous

3. Chinese and English touch operating system, using Japanese Panasonic PLC and servo motor closed-loop control to ensure high-speed and stable labeling

4. No blister, no wrinkle on the transparent label

5. It can be operated on a single machine or connected with a high-speed filling line to improve production efficiency and save production costs. It can also be specially designed according to user requirements.

Technical Parameter

Name High speed Ampoule and Vial sticker labeling machine
Model BGJ-W500
Label Material Adhesive Label Paper
Labeling Precision ±1mm
Labeling Speed 100-300pcs/min
Applicable Product Size 12≤Dia≤24mm
Applicable Label Size 10≤W≤150mm, 20≤L≤75mm
Power 220V 50HZ 1PH
Machine Size L1500*W600*H900mm
Machine Weight Around 300KG

Product Video

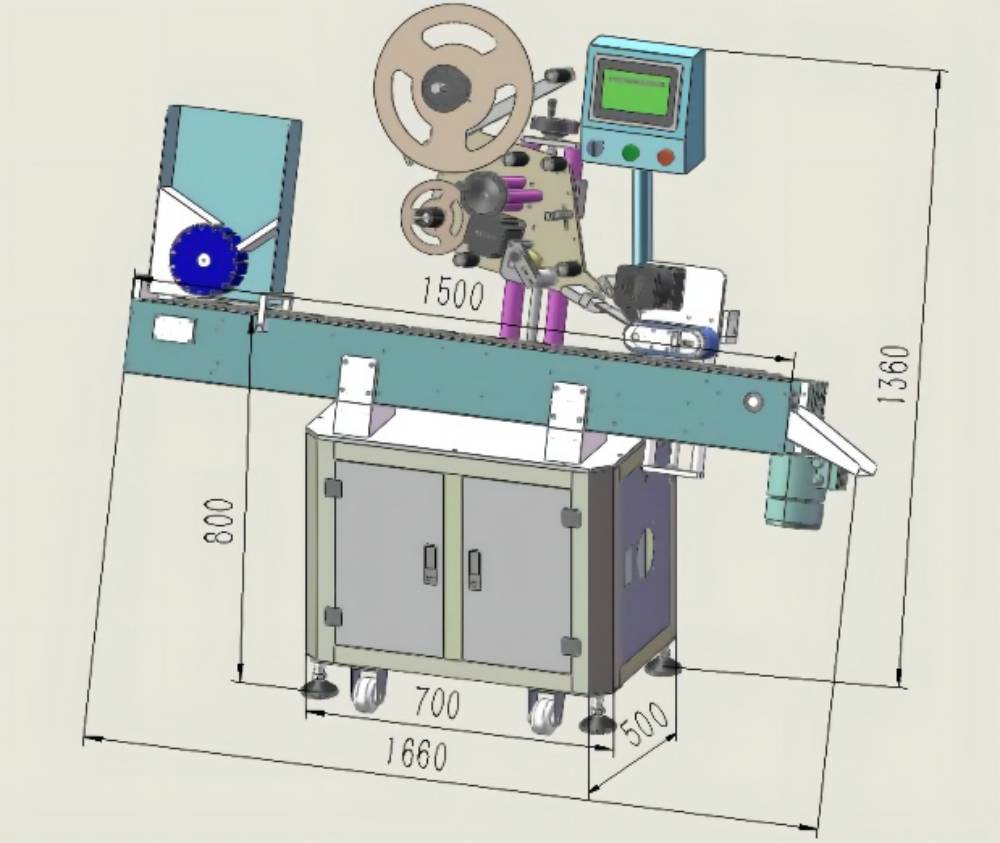

Machine Size Drawing
