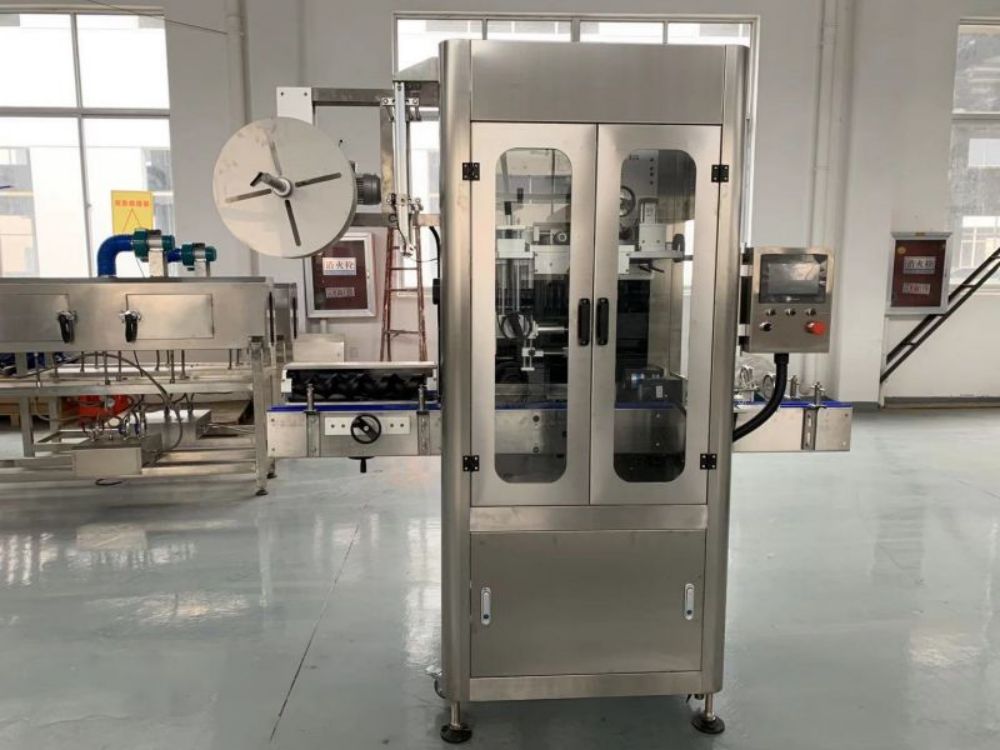

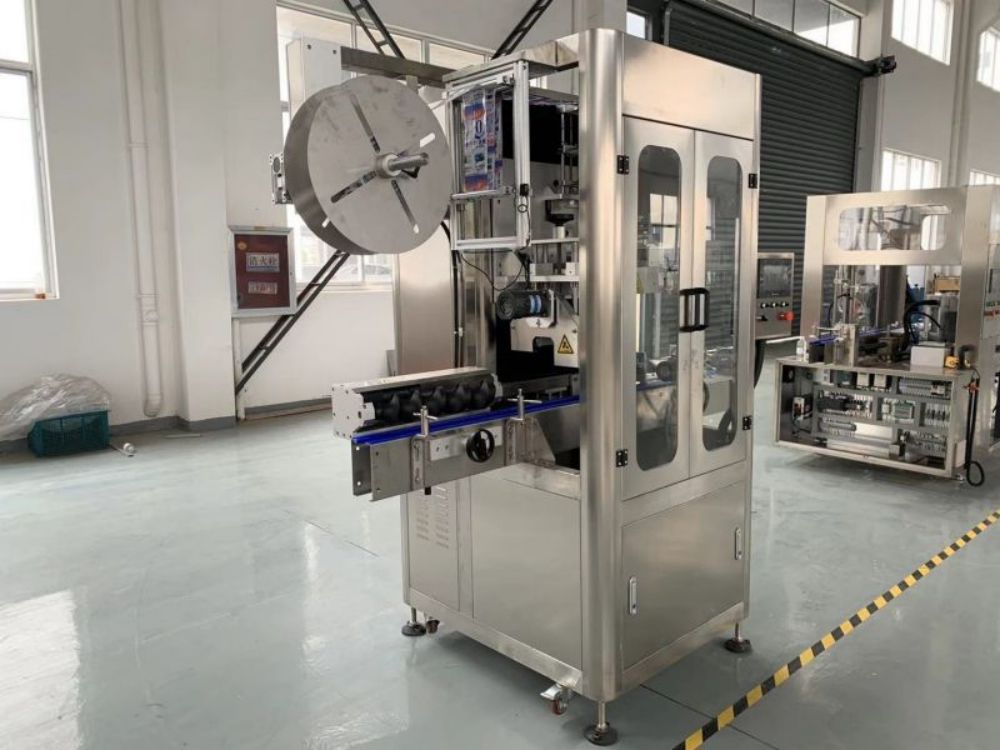

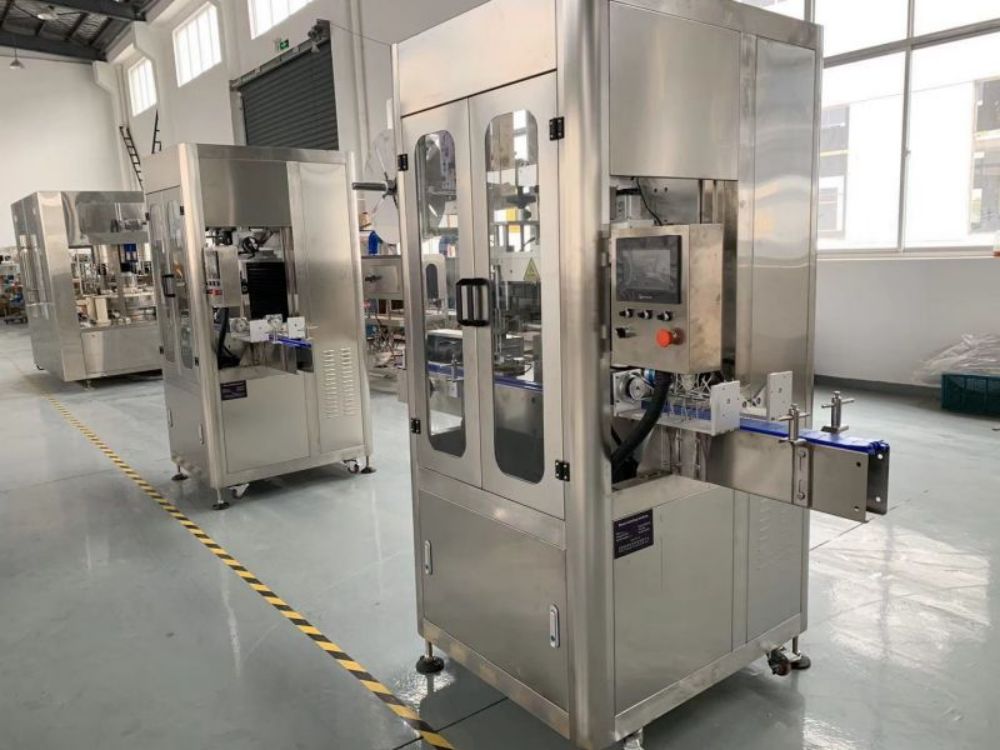

Shrink Sleeve Label Applicator


Machine Introduction

  1. Shrink sleeve applicators cutter unit: Built-in blades, with planetary pairing method and deflection crankshaft-type steel structure, to cut the tamper evident bands or shrink sleeve labels or shrink film.
  2. Labeler machine frame: The whole machine is made of aluminum alloy with anodized treatment and 304 stainless steel, which is used to support the host and fix the conveyor belt.
  3. Shrinking tunnel (electric heating hot air or steam type): Use the heat of electric heating or steam to shrink sleeve labels into the bottle and evenly attach it to the bottle.
  4. Drive group: It is controlled by single group or double group mechanism type synchronous servo motor, so that the shrink sleeve labels can be transported in a fixed size.
  5. Bottle-separating divider: This is quick change . and the feeding material is sleeved on the bottle, and the screw is conveyed at a fixed distance, so that the bottles are separated at equal distances, so as to facilitate the insertion of the label.
  6. Label Applicators Bottle group: Both sides rotate synchronously, and only one hand-wheel can be used to adjust the height and the positioning of the bottle, so that the bottle does not shake during transportation and is conducive to the setting of the height of the sleeve label.
  7. Three-color warning light: green warning light during normal operation, yellow flashing light when there is no shrink labels film material, and red light flashing when the host is abnormal.
  8. Mandrel: The label film material is sleeved and stretched, so that the shrink label material can be conveyed and cut.
  9. Electric eye frame group: The photoelectric eye is used to transmit the signal, and the control system is provided for the delivery of fixed size, and the position of the electric eye is adjusted to determine the cutting position of the blade in the cutter head.
  10. Brush group: Use rubber to hit the label brush that is inserted into the bottle to the position.
  11. Clean down group: The synchronous adjustment mechanism is used to adjust the two groups of conveying wheels under the brush to make slight contact with the rollers below the center column. When the label passes through, the label is put into the bottle at a high speed.
  12. Roll Shrink Sleeve Label Material rack group: The fixed paper ring of the label film material can be adjusted from 5” to 10” and set, and the material is fed by a set of conveying roller deceleration motors.
  13. Conveyor belt: Use the inverter to adjust the speed of the conveyor belt to match the speed suitable for the production capacity.
  14. Photo bottle electric eye: monitor the bottle to the appropriate position, and output the signal to make the host automatically insert the label.
  15. Feeding group: It is composed of a feeding box that controls the label feeding tension and a feeding frame above the electric eye frame group that controls the label turning and positioning, and is used to transmit the label film.
  16. Human-machine interface: It is the control center of the machine. Each operation display page is divided into manual, automatic, setting, abnormal display, etc., and several auxiliary knobs and push buttons are used to operate the labeling operation.

Technical Parameter

Model TB-S150
Speed 9000BPH (500ml bottle)
Bottle Diameter 28-125mm can customize according to product
Bottle Height 30-280mm
Label Material PVC,PET,OPS
Applicable Label Length 30-250mm
Applicable Label Thickness 0.027-0.13mm
Transparent Label Lenght more than 5mm
Inner Diameter of Roll Label Tube ≥4’’ (101.6mm)
Outer Diameter of Roll Label Tube ≤500mm
Volatge 220V 50HZ
Input Power 1.5KW
Machine Size 2300*550*1500mm
Total Weight 1200KG
