Hot Glue Roll Fed Empty Bottle Labeling Machine


Machine Introduction

  1. The function of this roll fed empty bottle labeling machine is: sticking OPP, BOPP and paper labels on the round or square bottle, and the label is a roll uncoated label. The machine automatically feeds labels, slits labels, glues both ends of labels and labeling.
  2. This opp labeler machine is suitable for mineral water, beverage, food, condiment and other industries, and realizes the cutting, gluing and labeling of round and square bottles.
  3. The system adopts schneider microcomputer control, the touch screen directly clicks the menu operation mode, and the parameter adjustment is convenient and intuitive.

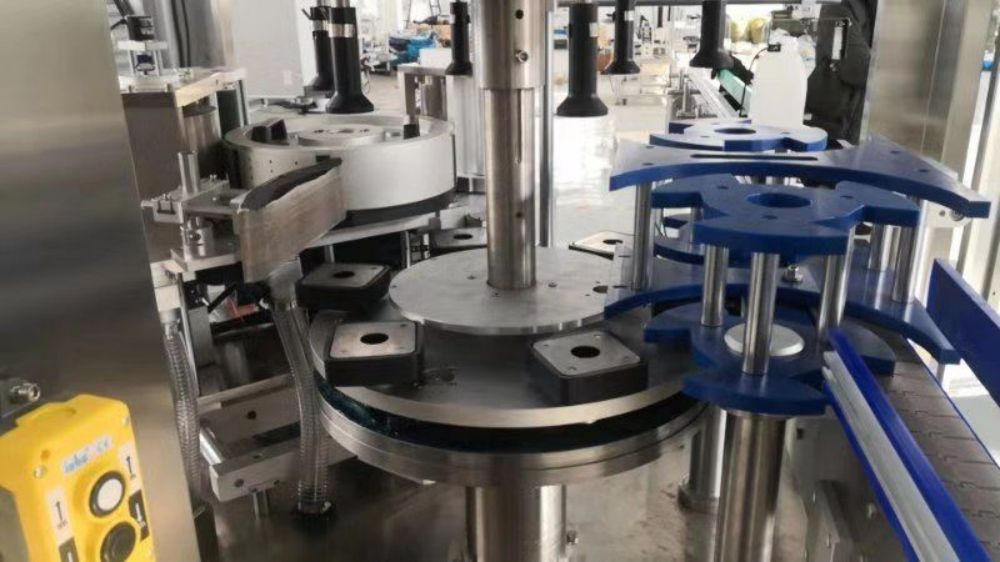

  4. By replacing the bottle feeding screw, the star wheel and the bottle holder can be suitable for high-speed labeling of bottles of various specifications.
  5. The sensitivity of the label electric eye is adjustable, especially for the transparent label and the label backing paper with different light transmittance, which can be used for identification and comparison.
  6. The electric eye for measuring objects is not disturbed by external signals such as external light or ultrasonic waves, and the detection is accurate to ensure the accuracy of labeling.
  7. All mechanisms including racks, conveyors, blocking rods and fasteners are all made of stainless steel, aluminum profiles and engineering plastics, which will never rust, no pollution, and meet GMP environmental requirements.
  8. The empty bottle labeling machine working status and faults of the machine have a reminder and warning function, which makes the operation and maintenance more convenient and safe.
  9. This model is suitable for big size bottle like 1.5L 2L 5L bottle labeling

Technical Parameter

Name Hot Glue Roll Fed Empty Bottle Labeling Machine
Model OPP-6
Speed 5000bottles per hour
Applicable Bottle Shape Round Bottle Labeling, Square Bottle Labeling,Oval Bottle Labeling
Labeling Precision ±1mm
Power 9KW
Voltage 380V 50HZ 3PH
Air Pressure 5 Kg f/cm2
Machine Size L3000*W2000*H2000mm
Weight Around 2000KG
