Automatic Carton Sealing Machine Carton Tapping Machine


Main Introduction

1. Automatically adjust the width and height of cartons of different specifications

2. Side-driven automatic adjustment and adjustment, box feeding, and smooth operation. The upper cover and rear cover of the carton are automatically folded in, and the corners are quickly flattened without folding.

3. Using Taiwan motor, the total power is 360 watts, which can be continuously produced for 24 hours without failure

Technical Parameter

Name Automatic Carton Sealing Machine
Model FX-50A
Applicable Carton Size L200-600mm*W150-500mm*H150-500mm
Table Height 580-680mm
Sealing Speed 300cartons per minute
Air Consumption 5-6kg/cm2
Applicable Tape Size 48-72mm
Power 600W
Voltage 220V/380V 50HZ/60HZ
Machine Size L1981mm*W1080mm*H1804mm
Machine Weight Around 230kg

Product Video

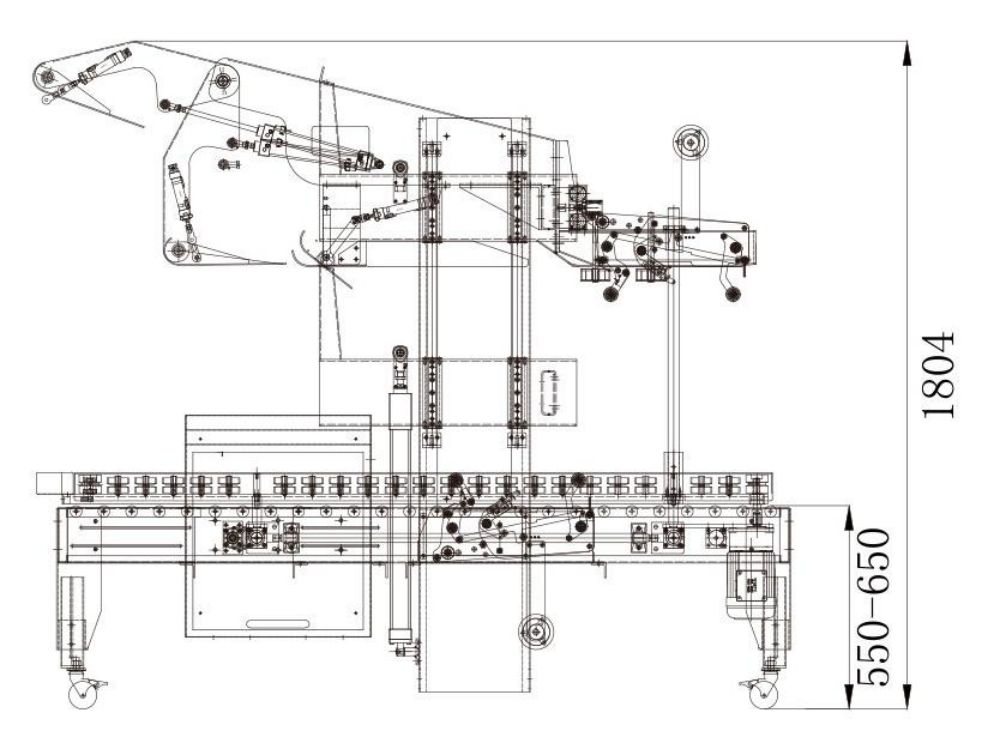

Machine Size Drawing
